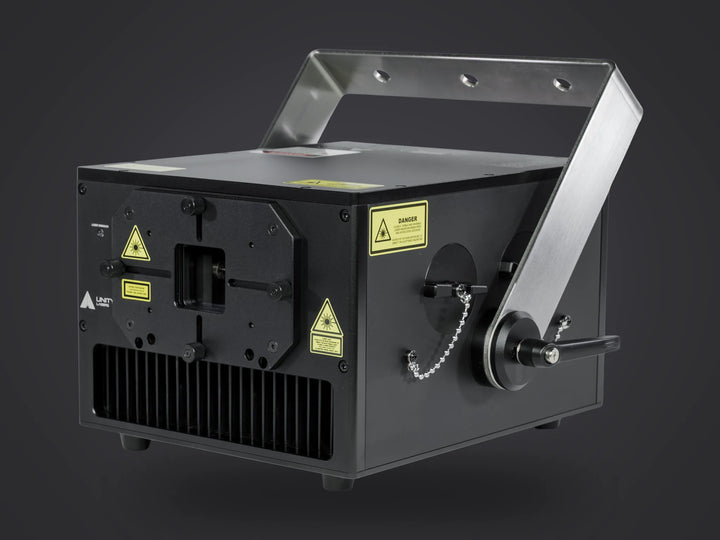

Unity Elite 10 PRO RGB Laser Projector, 10W, FB4, IP65
- Output10 W RGB
- Scan speed35 kpps
- ControlFB4, IP65
- Weight12.8 kg
What you need
- Computer
- A Windows PC: Windows 10 64-bit or newer, quad-core i5 or better, 8 GB of RAM. QuickShow and Beyond are Windows software.
- Controller
- Built in (Pangolin FB4). Connect the laser to your PC or network with the included Ethernet cable. QuickShow is included; Beyond works too with its own license.
- Public shows (US)
- This is a Class 4 laser. Public shows in the US need a laser light show variance from the FDA.
Professional High-Power Laser System
The Unity ELITE 10 PRO FB4 (IP65) is a top-of-the-range laser projector designed for lighting designers, SFX professionals, and rental companies. Engineered with a built-in Pangolin FB4 media server and a rugged, waterproof housing, this system offers seamless control and reliability in any environment.
Key Features
- Integrated FB4 Control: Direct control via DMX, Artnet, Ethernet, or sACN.
- All-Weather Protection: IP65-rated rain-proof housing for outdoor touring and permanent installations.
- Full-Color Performance: High-quality semiconductor laser diodes with analogue 100kHz modulation.
- Versatile Application: Ideal for large indoor venues (up to 10,000 people) and medium-scale outdoor shows.
Technical Specifications
| Optical Output | >10W Guaranteed |
| R | G | B [mW] | 3,200 | 3,200 | 4,000 |
| Scanning System | 35,000 pps @ 8° (45° Max Angle) |
| Beam Specs | 6 x 6 mm Size | <1.2mrad Divergence |
| Ingress Rating | IP65 (Rain-proof) |
| Weight | 12.8 kg |
| Dimensions | 337 x 360 x 191 mm |
Safety & Compliance
The Elite 10 PRO is fully compliant with the latest EN 60825-1 and FDA regulations. It features a keyed interlock, emission delay, magnetic interlock, scan-fail safety, and a mechanical shutter.
What’s in the Box?
- Unity ELITE 10 PRO FB4 Laser
- Heavy-duty Flight Case
- Pangolin QuickShow Software
- E-STOP Remote & XLR Cable
- Mains & Ethernet Cables
- Set of 4 Safety Keys
- Quality Certificate
